Overviewof HUALI

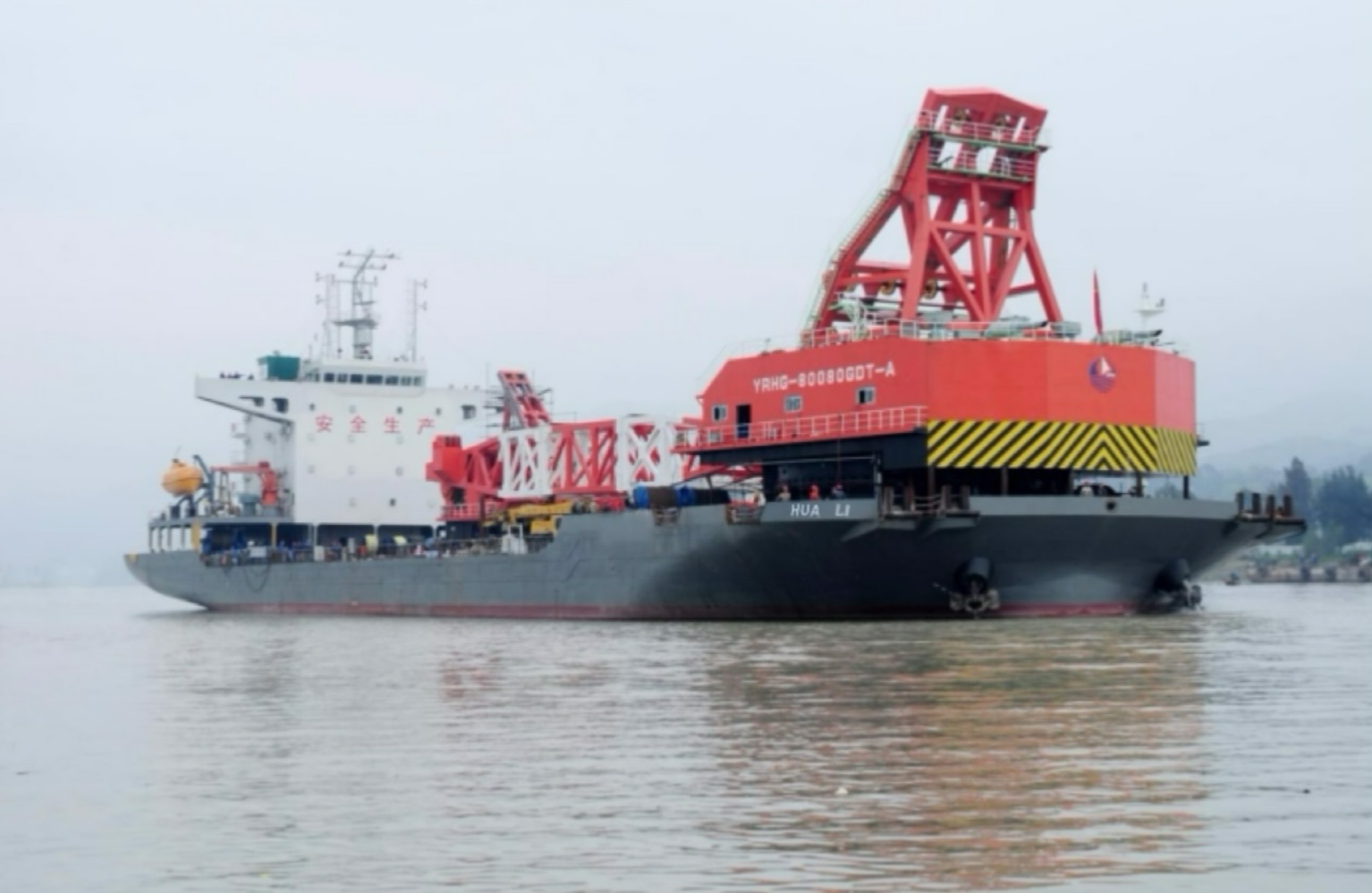

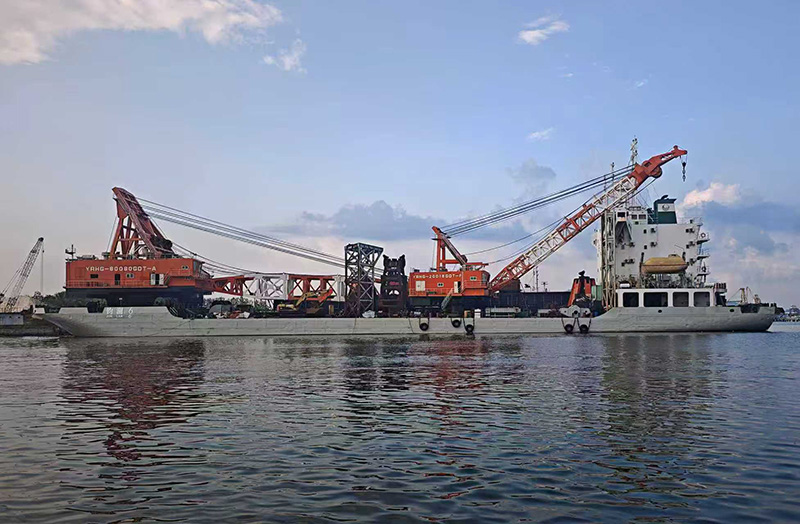

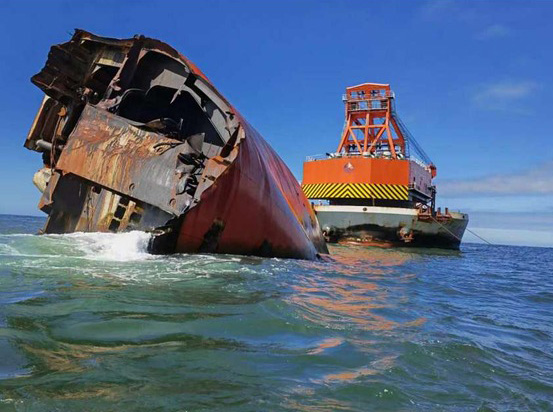

HUA LI,built in April 2014,is a multifuctional vessel for wreckremoval and dredging.It is particularly suitable for salvaging deep-water sunkenships in harsh sea conditions with high winds and waves, and is suitable for self-propelled mobilization in any sea area in the world. The vessel is driven by propellers and equipped with two 360°rotary cranes,mainly engaged with wreck salvage and dreging,with advantage over its competitors in the industry deep-water salvage and dredging.

  • Basic parameters

    Vessel Type

    Grab Dredger

    Date of Built

    April 18, 2014

    Flag

    The United Republic of Tanzania

    Navigation Zone

    International Unlimited Navigation Area (Second Ice Zone Strengthened)

    Navigation Zone

    International Unlimited Navigation Area (Second Ice Zone Strengthened)

    Length

    121.88 m

    Molded Breadth

    31.86 m

    Molded Depth

    6.53m

    Average Draft

    3.6m

    Gross Tonnage

    8352 T

    Main Engine

    Guangzhou Diesel 2206 kw×2 sets

    Speed

    11.8 knots

    Crane 1

    360 ° rotary, lifting capacity of 800 tons

    Crane 2

    360 ° rotary, lifting capacity of 200 tons

    Deck Equipment

    4 sets of double-drum mooring winches(pulling force 30T), 8 working anchors, (4pcs of 8T,4pcs of6T, 2pcs of chain anchor), anchor wire rope1300 meters, φ56 (4pcs)φ60 (4pcs),crane wire rope:main crane φ68, sub-cane φ62 spare wire rope (500m*10sets)

    Deck Space and Loading Capacity

    Deck space 2300㎡, sufficient for complicated offshore operation

    Navigation Equipment

    Japan Furuno, German Anshutz

    Japan Furuno, German Anshutz

    Equipped according to the latest international standard





60m³ Grab Crane

The dredging crane is 360° full rotary, capable of hoisting, salvaging,dredging and smashing. It can undertake highly difficult hard engineering works under deep water environment.

The working temperature is between -20°C to 40°C(water temperature:0°C~28°C), it ensures safety work under maximum wind speed 20m/s (gust).

  • Technical Parameters

    Dredging Performance

    Maximum grasping force

    450T

    Beam length

    43m

    Working radius

    24.35~34.18~46.42m

    Beam working angle

    70°~55°~30°

    Grab lifting speed

    Full load 0-40m/min No load 0-80m/min

    Grab wire rope

    φ60mm four wires*2

    Amplitude variation speed

    0~36*2m/min

    Rotating speed

    0~0.5r/min

    Max. lift head

    12m(on water)

    Max.dredging depth

    200m(vertically under water)

    Hoisting capacity

    Rated lifting load

    800T

    Smashing performance

    Beam length

    43m

    Working radius

    24.35~34.18~46.42m

    Beam working angle

    70°~55°~30°

The overall performance of the machine is stable and easy to operate. The three imported Mitsubishi diesel engines with a power of 1890kW are powerful and have a very low failure rate to ensure the efficiency of the whole machine. The machine drives the transfer case through the diesel engine to drive the oil pump to power the entire system. The oil pump and motor in the system adopt German Rexroth products, and the proportional control flow reversing valve group adopts world famous brand products such as Rexroth and SUN. The main crane and the auxiliary crane are driven by the diesel engine-hydraulic drive, the proportional control flow reversing valve group and the electronic system are integrated and controlled by the PLC to control the lifting speed with stepless speed regulation, and the energy release during the lowering is well solved. It can realize deep excavation, deep excavation in fixed place, hovering, and semiautomatic dredging. The depth of the excavation of the unit can be grasped by the sensor signal reception on the reel. The variable amplitude system and slewing mechanism are also controlled by diesel engine-hydraulic drive, which has good performance and reliability, and uses the grab and hammers which can fall to the bottom automatically.

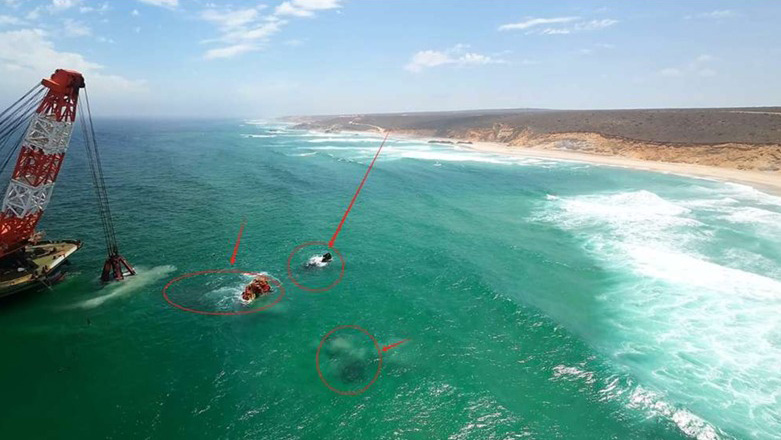

This machine is currently the most self-developed fully hydraulic system controlled grab bucket crane with the maximum bucket capacity and strongest excavation force. It can excavate up to 200meters water depth, which is obviously superior to the Japanese SKK dredging crane. At present, the crane gripping force, the weight of the grab and the bucket capacity rank second in the world. The weight and function of the free-falling weight hammer are the first in the world. It can effectively cope with the world's largest displacement wreck (170,000Tons) and the hardness of rock above 50 MPa.





200T Crane

This dredging crane is a 360 °degree fully rotating grab bucket crane which has the function of dealingwith complex marine environment and is matched with double-peel and six-peel grab buckets for emergency repair.

The working temperature is between-20°Cto40°C(water temperature:0°Cto28°C),it ensures safety work under maximum wind speed20m/s(gust).

  • Technical Parameters

    Dredging Performance

    Rated load

    200T

    Reel tension(grab)

    120T(including the grab selfweight)

    Beam length

    33m

    Working radius

    70°~50°~30°

    Grab parameters

    12m³×40T(selfweight)

    Grab lifting speed

    Full load:0~30m/min No load:0~50m/min

    Grab wire rope

    φ60mm single rope

    Amplitude variation speed

    0~40×2m/min

    Rotating speed

    0~1.1r/min

    Max. lift head

    6m(onwater)





Equipment list for 60m³ crane - MV.HUA LI

  • Technical Parameters

    Vessel Flag

    The United Republic of Tanzania

    International Gross Tonnage

    8352T

    Year of Built

    2014

    Maximum Lifting Capacity

    800T

    Maximum Grasping Force

    450T

    Boom Lengh

    43m

    Working Radius

    24.35~34.18~46.42m

    Beam Working Angle

    70°~55°~30°

    Main Engine

    Mitsubishi S16R2-PTAW×1890kw×3

    Dredging Bucket

    80m³/60m³/170t(soft rock)/×1
    100m³/60m³/170t(soft rock)/×1

    Light Orange 6-peel Bucket for Salvage

    160T×1

    Heavy Orange 6-peel Bucket for Salvage

    200T×1

    Orange Double-peel Bucket for Salvage

    200T×1

    Light Orange Double-peel Bucket for Dredging

    200T×1

    Heavy Orange Double-peel Bucket for Dredging

    240T×1

    Lifting Hook

    800T×1

    Lifting Hook

    200T×1

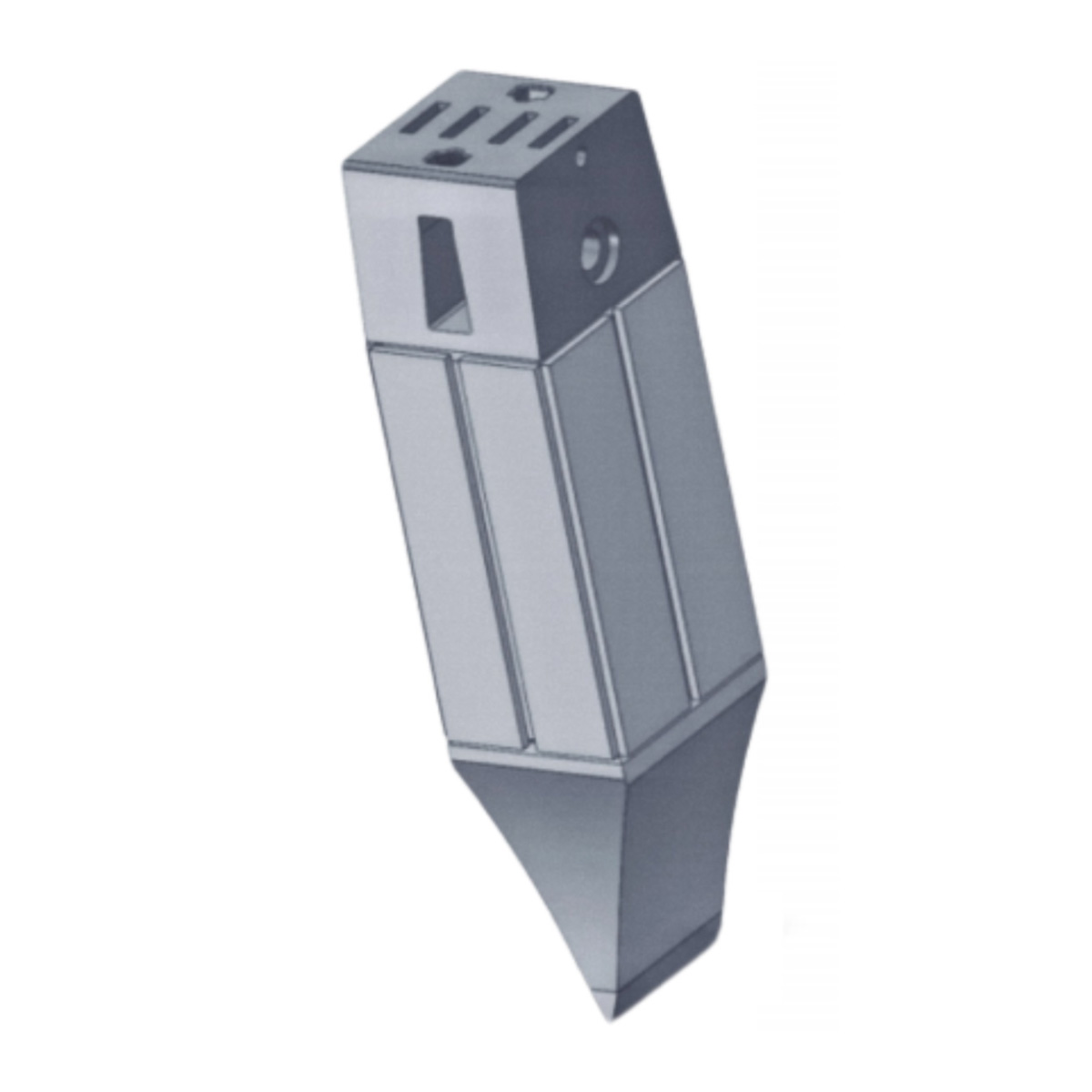

    Heavy Hammer

    200T×1

    Light Hammer

    130T×1

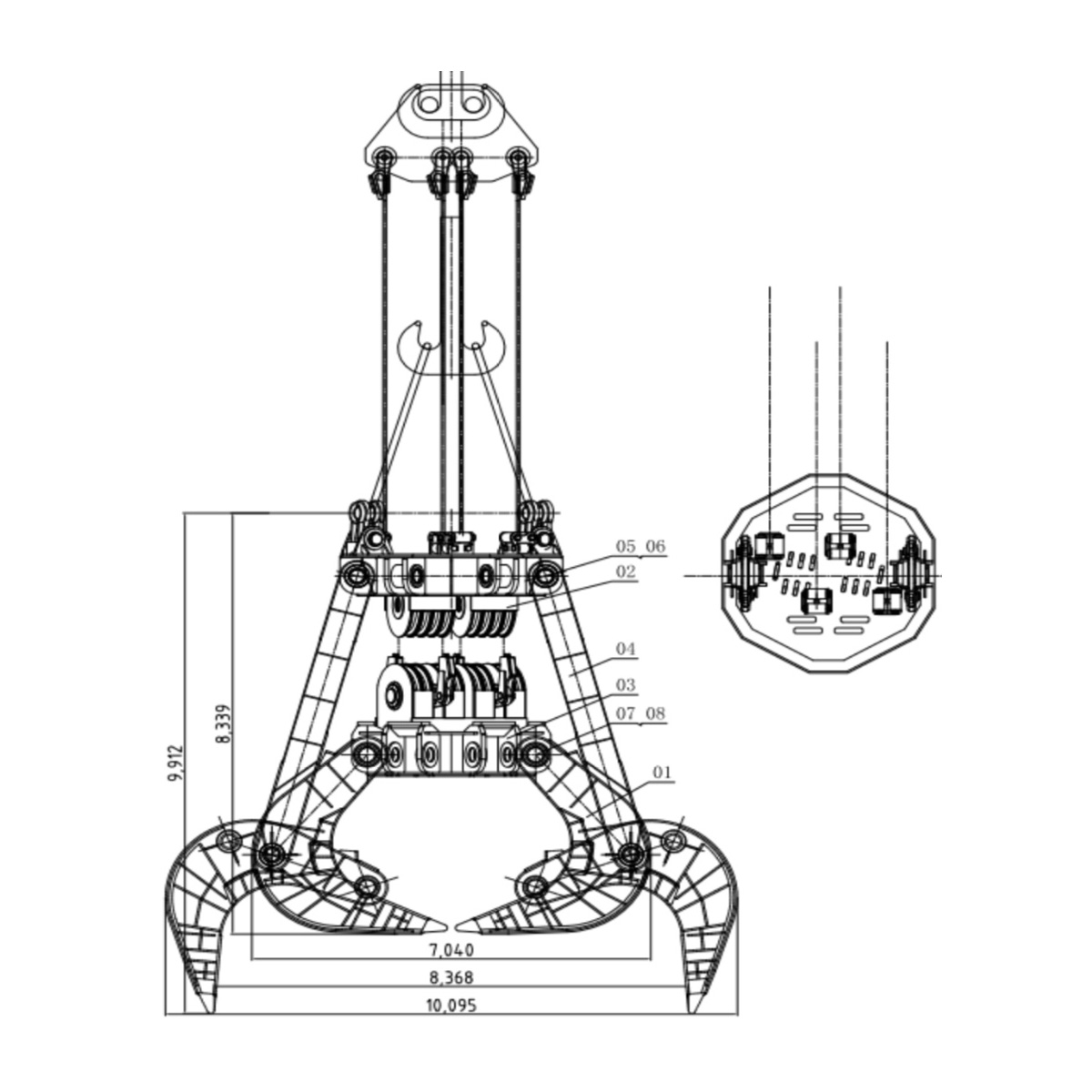

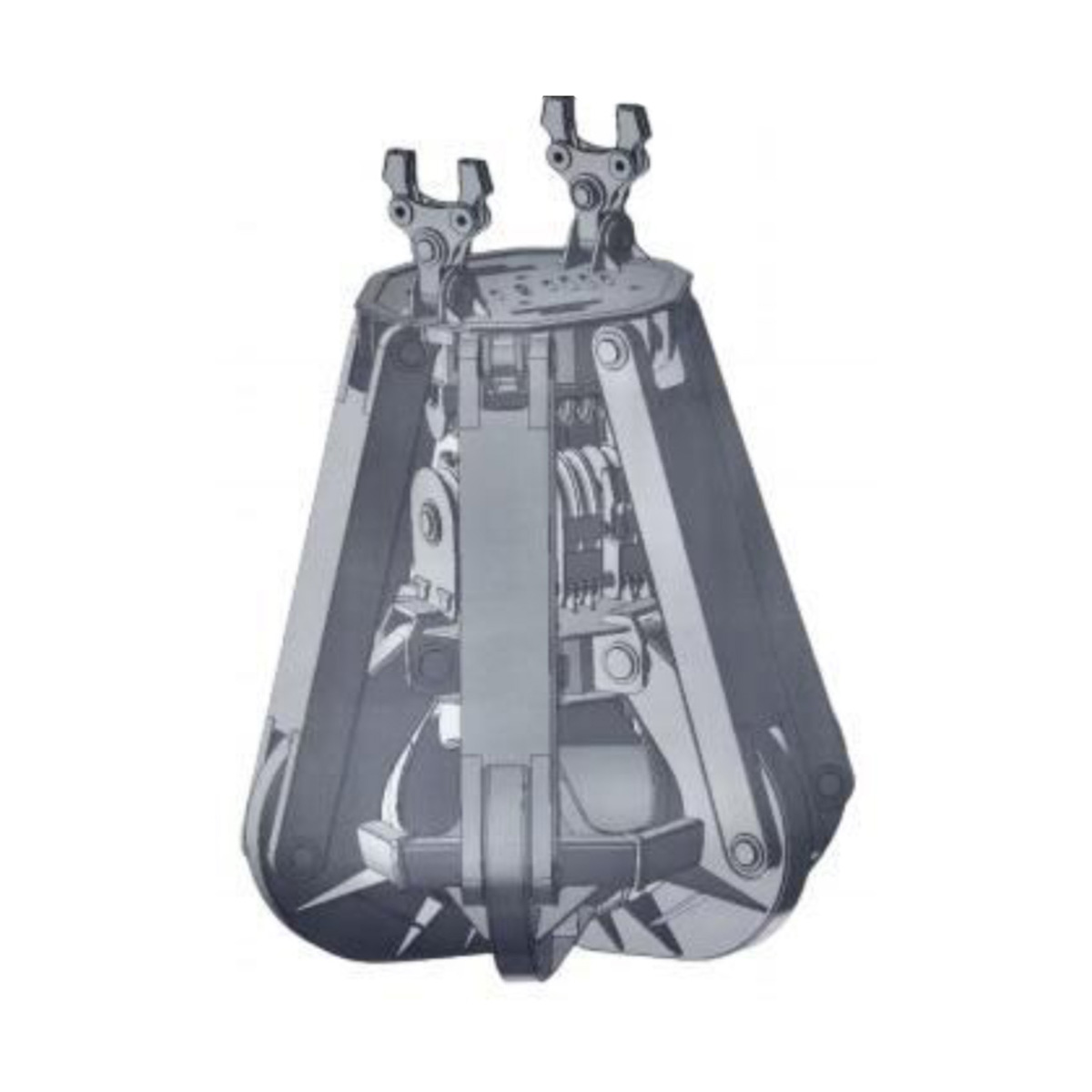

Light Orange 6-Peel Bucket for Salvage(160T)

Grab bucket weight :160T, closing rope travel 11915mm(5 times rate), length 32000mm, dia 60mm, pulley dia:outer 1100mm, inner 920mm For deepwater salvage,can deal with 40mm thickness pate.

  • Technical Parameters

    weight

    160.0T

    usage

    deepwater salvage
    for 40mm thickness plate

    peel qty.

    6

    closing rope travel

    11915mm

    closing rope length

    32000mm

    closing rope diameter

    60mm

    pulley diameter

    outer dia 1100mm,inner dia 920mm

    color

    orange

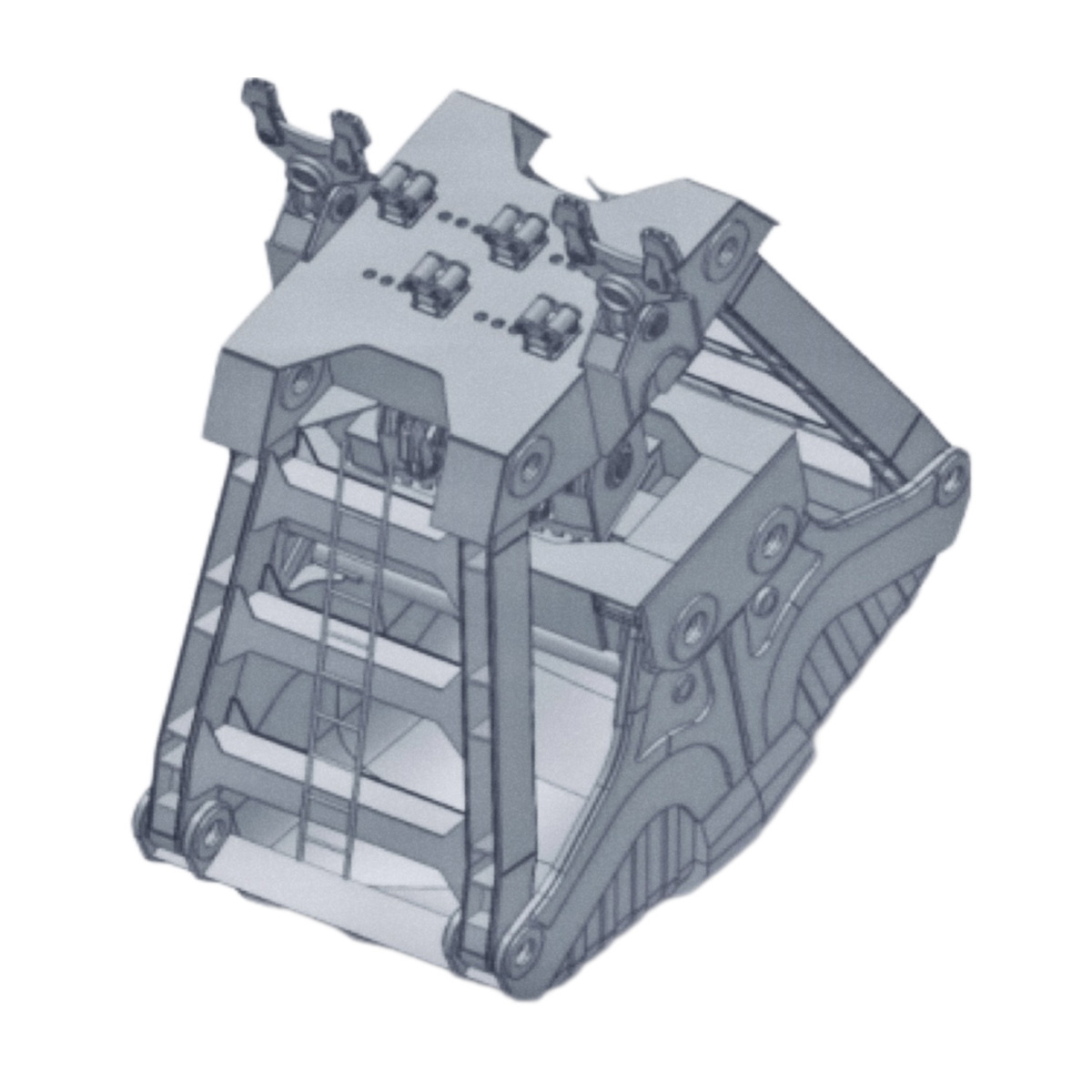

Heavy Orange 6-peel Bucket for Salvage(200T)

Grab bucket weight 200T, closing rope travel 13255mm(5 times rate), length 38000mm,dia 60mm, pulley dia:outer 1100mm,inner 920mm.

  • Technical Parameters

    weight

    200T

    volume

    21m³

    usage

    deepwater salvage

    peel qty

    6

    closing rope travel

    13255mm

    closing rope length

    38000mm

    closing rope diameter

    60mm

    pulley diameter

    outer dia 1100mm

    color

    orange

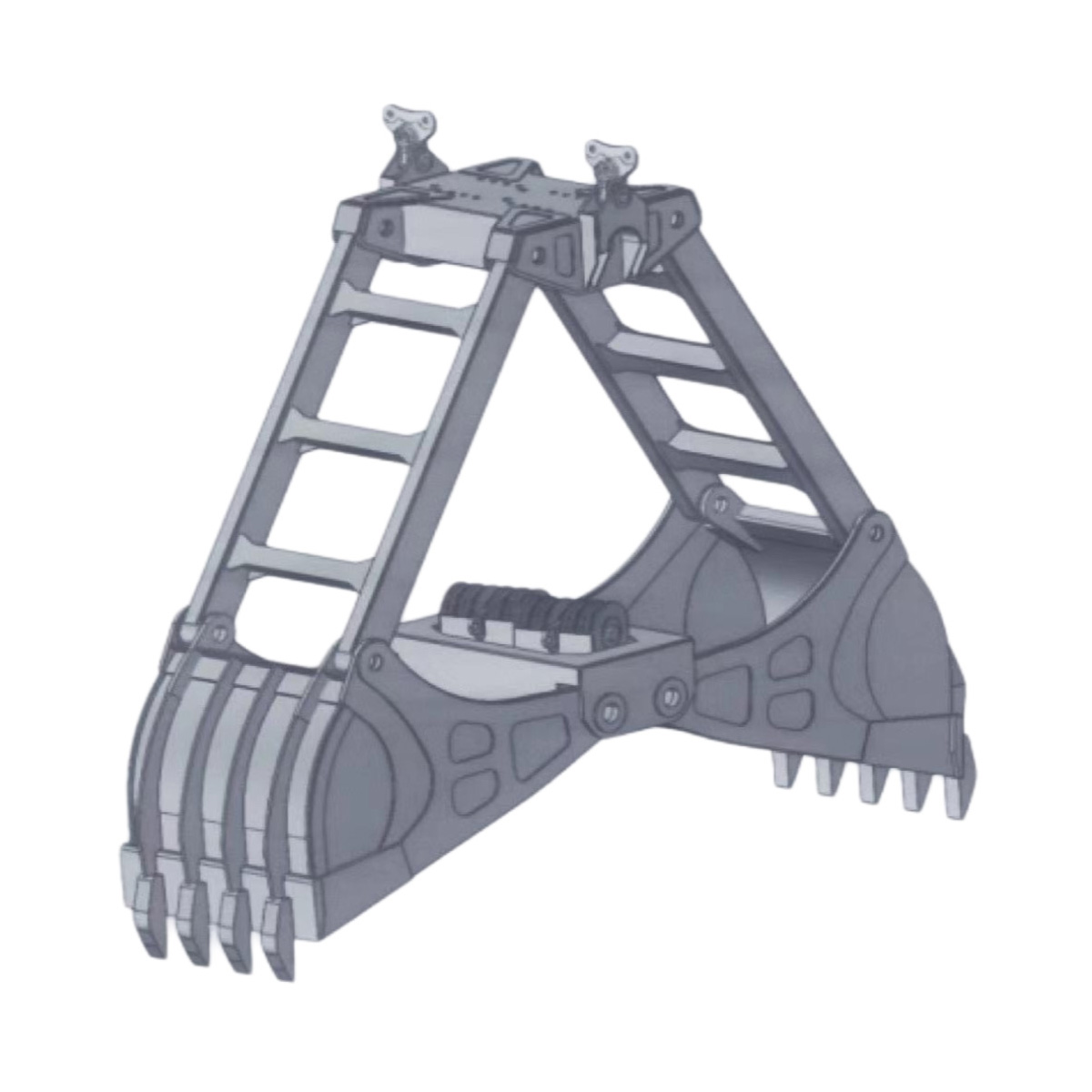

Orange Double-peel Bucket for Salvage(200T)

Grab bucket weight 200T, closing rope travel 22265mm(5 times rate), length 43500mm,dia 60mm, pulley dia:outer 1100mm,inner 920mm.

  • Technical Parameters

    weight

    200T

    usage

    deepwater salvage

    thickness plate

    40mm

    peel qty

    2

    closing rope travel

    22265mm (5 times rate)

    closing rope length

    43500mm

    closing rope diameter

    60mm

    pulley diameter

    outer dia 1100mm,inner dia 920mm

    color

    orange

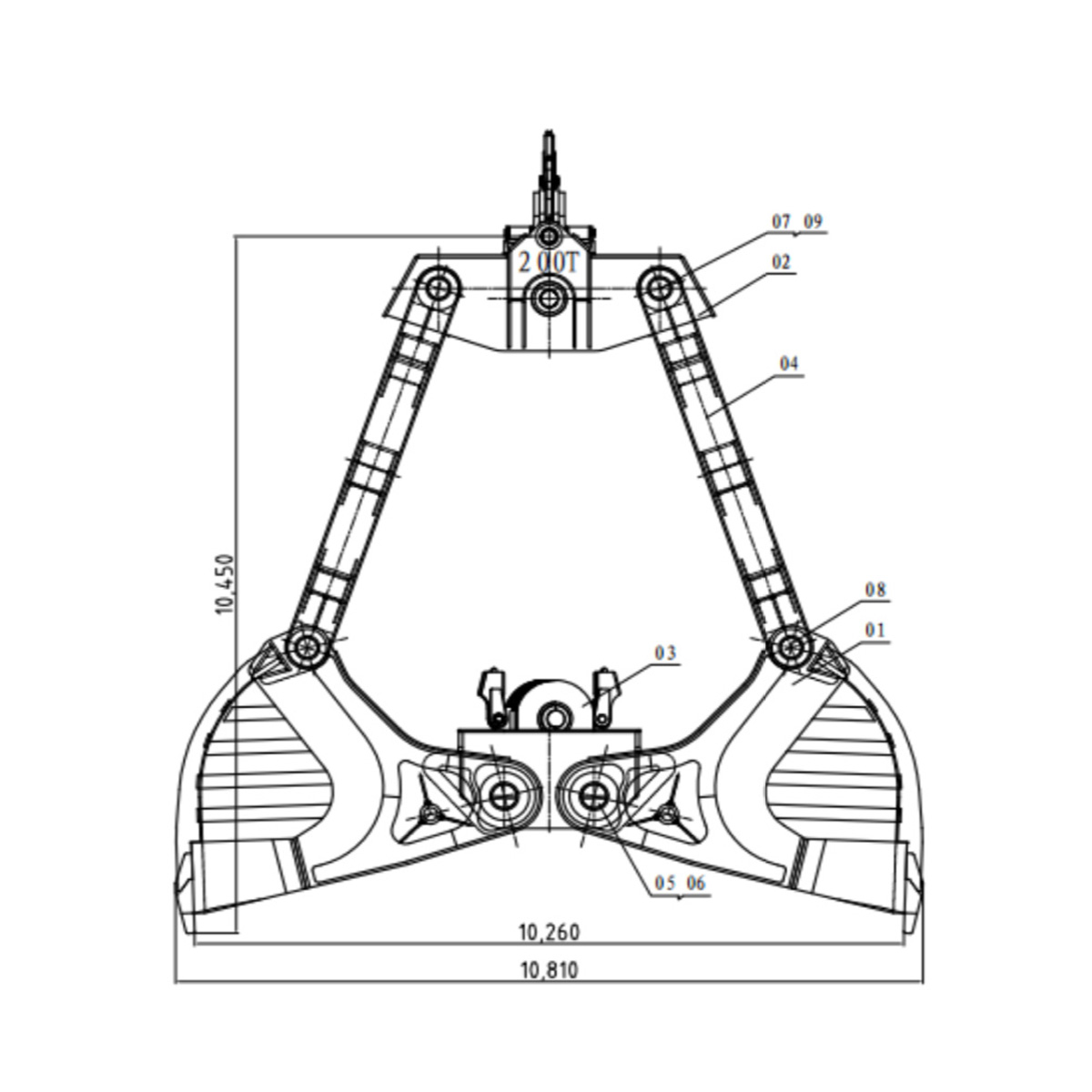

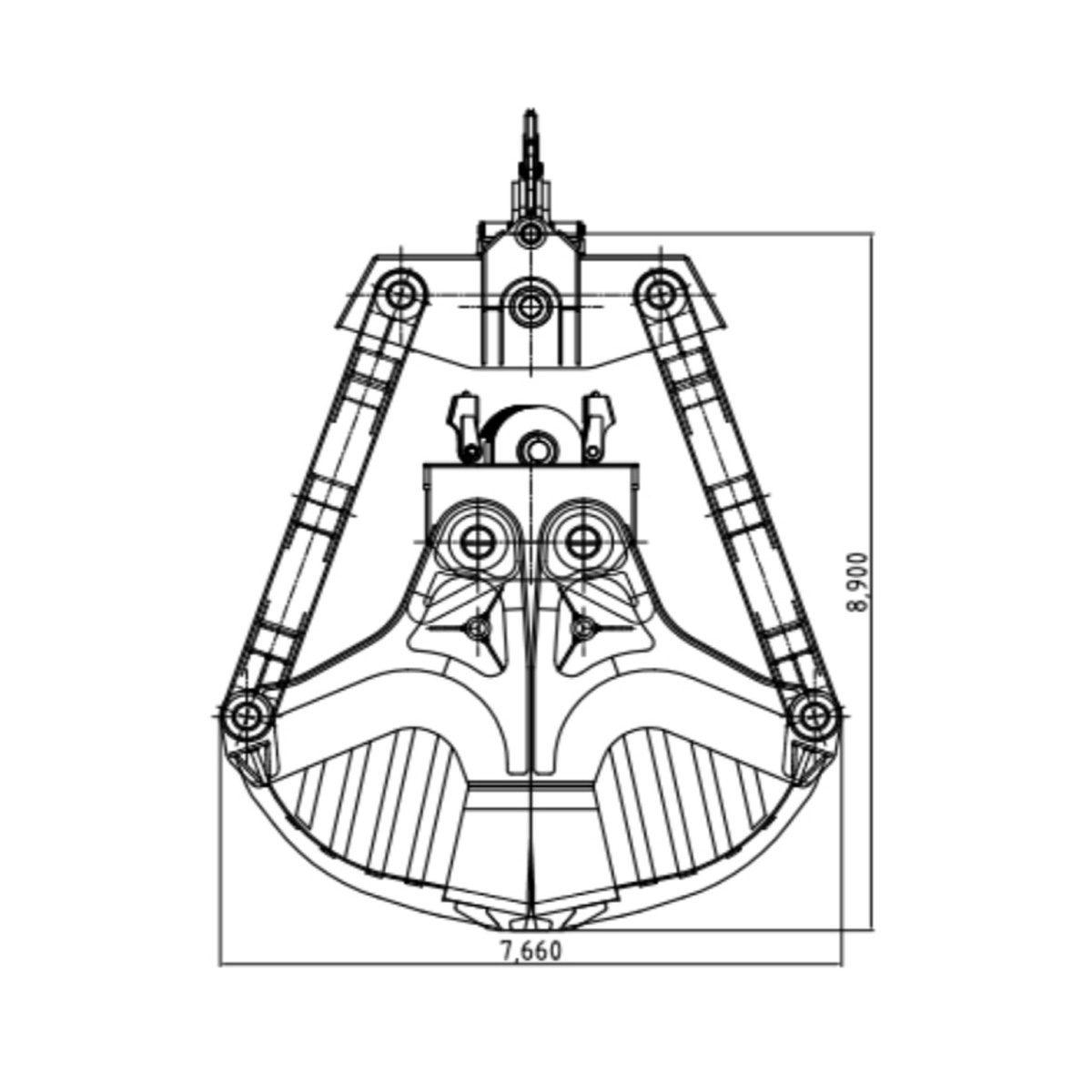

LightOrange 2-peel Bucket for dredging(200T)

Grab bucket weight 200T,closing rope travel 22265mm(5 times rate),length 43500mm,dia 60mm,pulley dia:outer 1100mm,inner 920mm.

  • Technical Parameters

    weight

    200T

    usage

    unblock

    thickness plate

    40mm

    peel qty

    2

    closing rope travel

    22265mm (5 times rate)

    closing rope length

    43500mm

    closing rope diameter

    60mm

    pulley diameter

    outer dia 1100mm,inner dia 920mm

    color

    orange





Heavy Orange 2-peel Bucket for dredging(240T)

Grab bucket weight 200T,closing rope travel 22265mm(5 times rate),length 43500mm,dia 60mm,pulley dia:outer 1100mm,inner 920mm.

  • Technical Parameters

    weight

    240T

    usage

    unblock

    thickness plate

    40mm

    peel qty

    2

    closing rope travel

    28065mm (5 times rate)

    closing rope length

    51000mm

    closing rope diameter

    60mm

    pulley diameter

    outer dia 1100mm,inner dia 920mm

    color

    orange

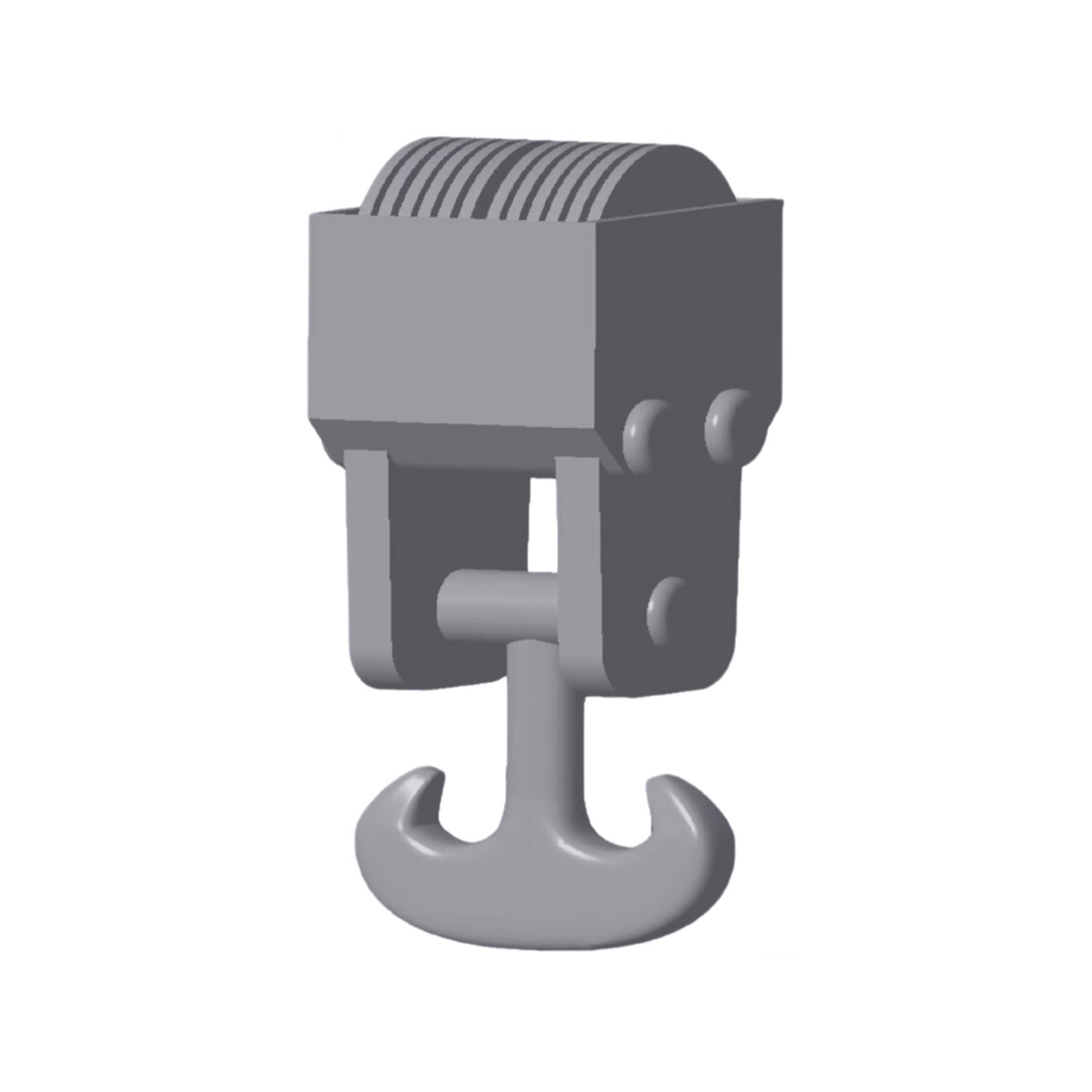

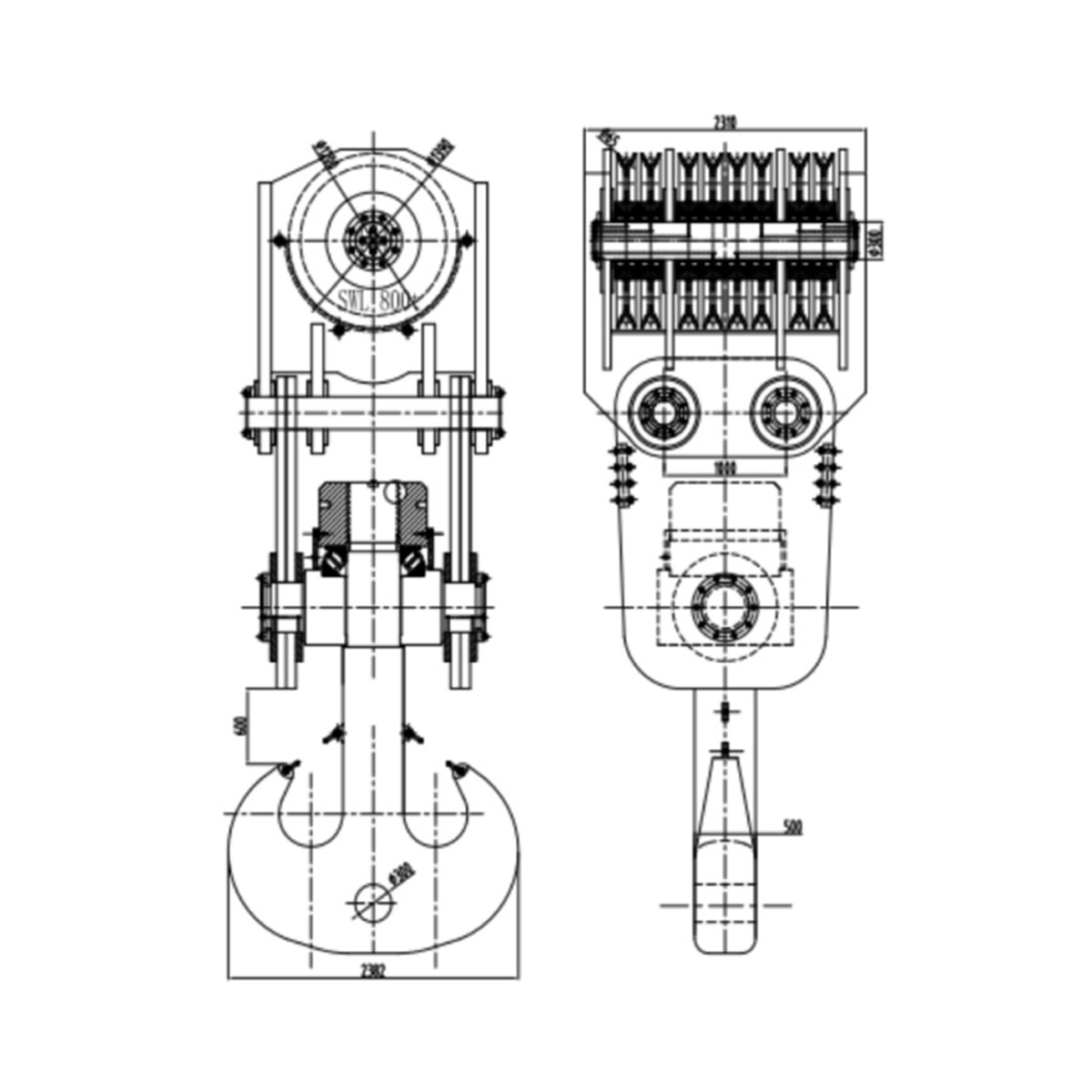

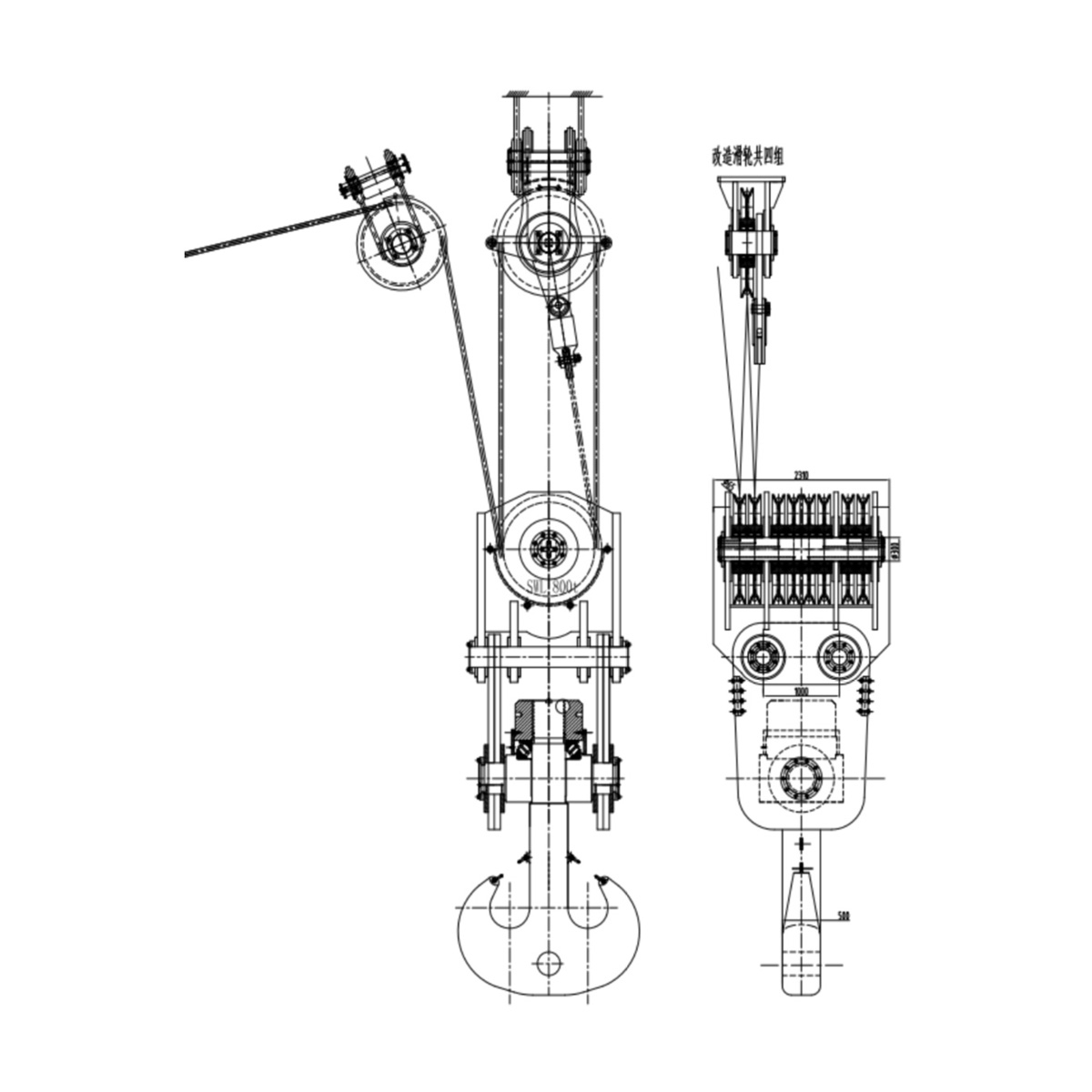

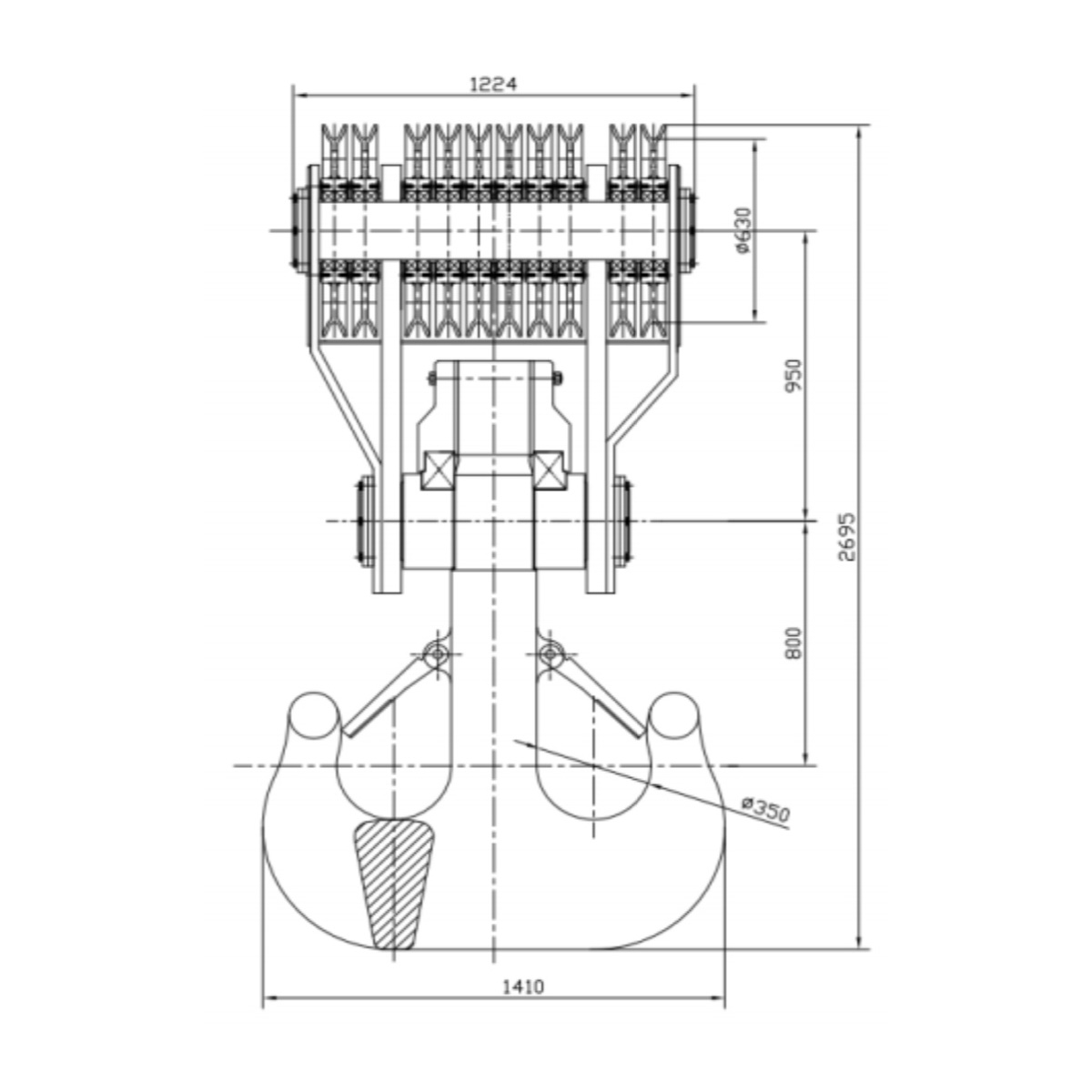

Lifting Hook(800T)

4 wire ropes (dia65mm) for main hook

Lifting Hook(200T)

Rated load 200T for dia32mm wire ropes, pulley bear is of deep groove ball bearing 61938, hook bearing is of thrust roller bearing29

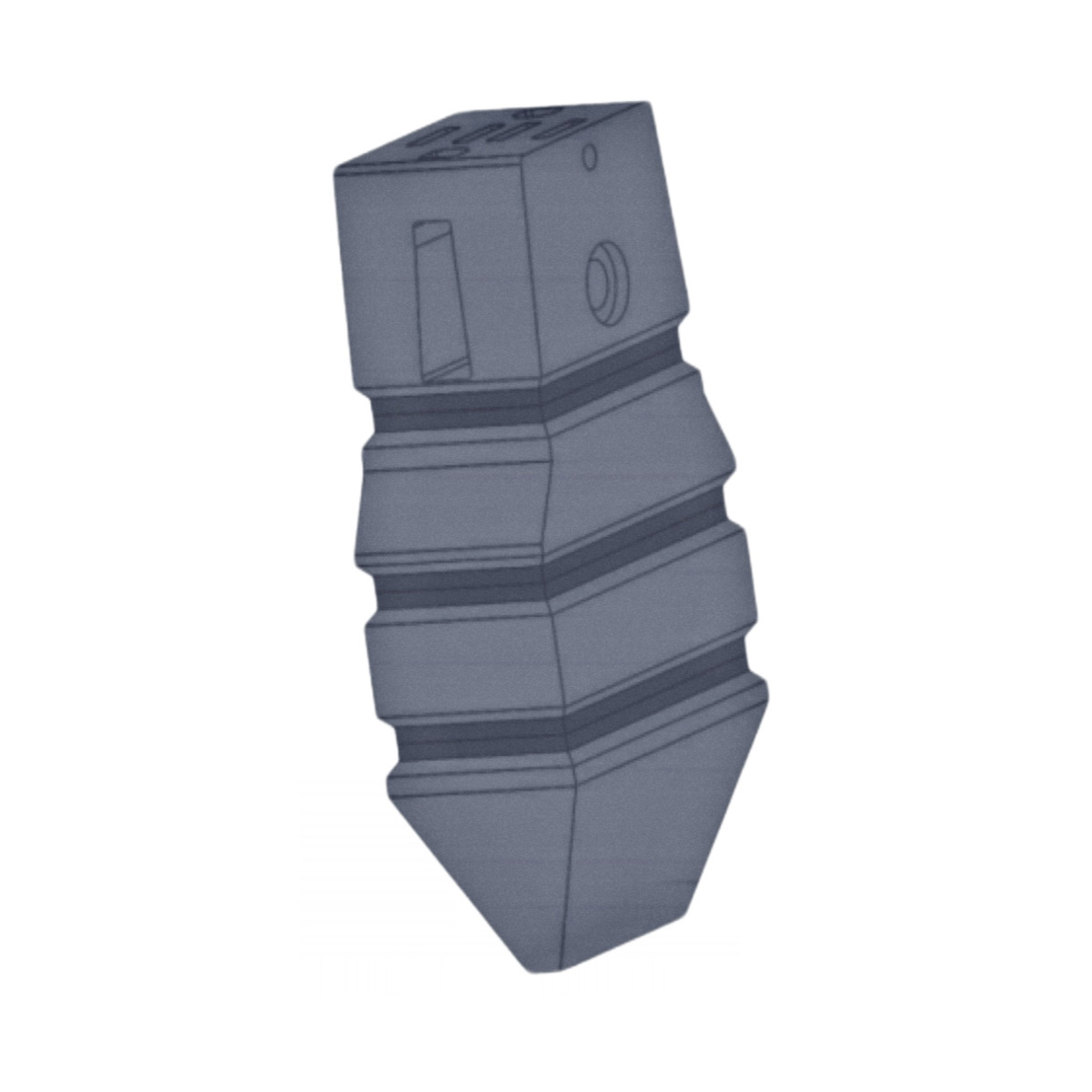

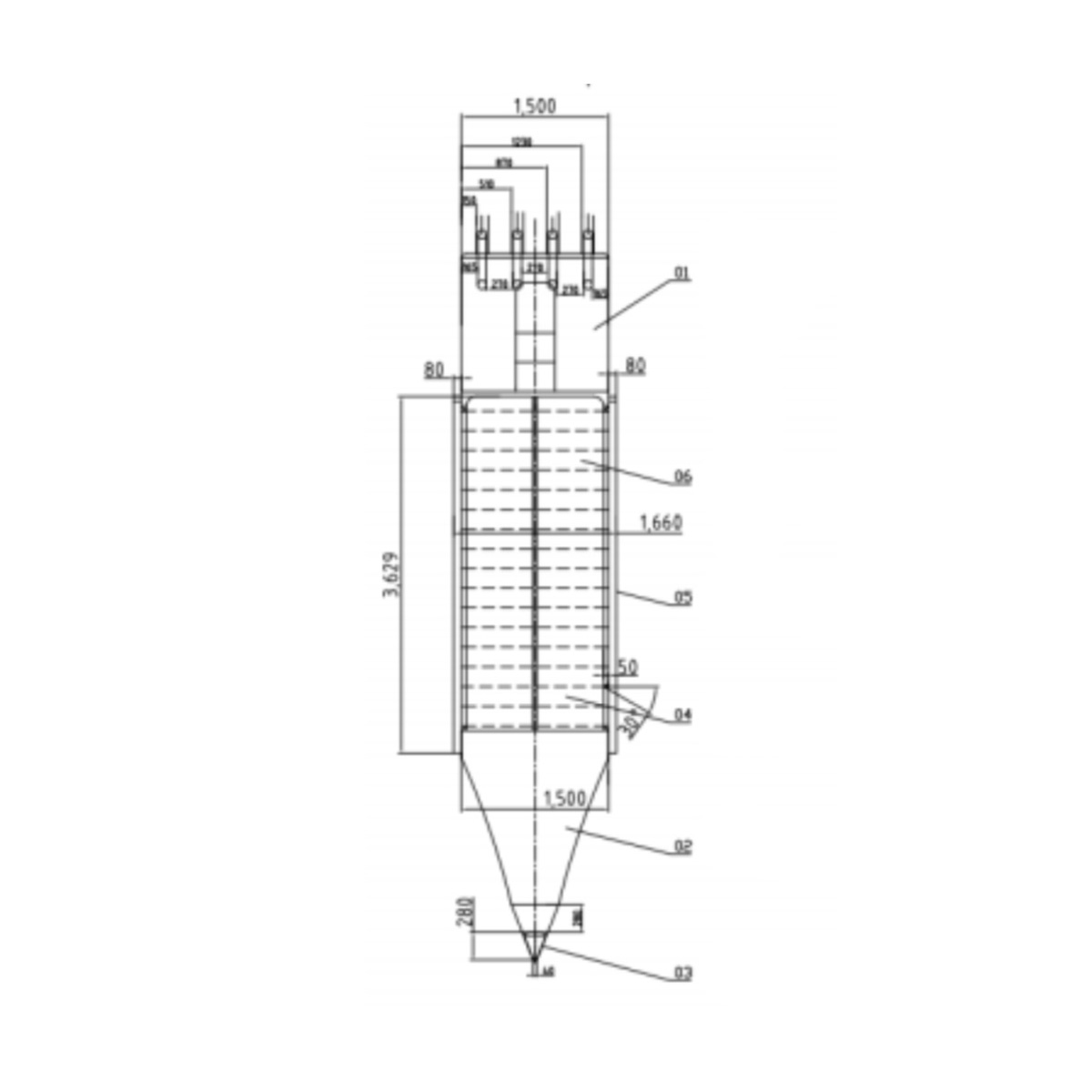

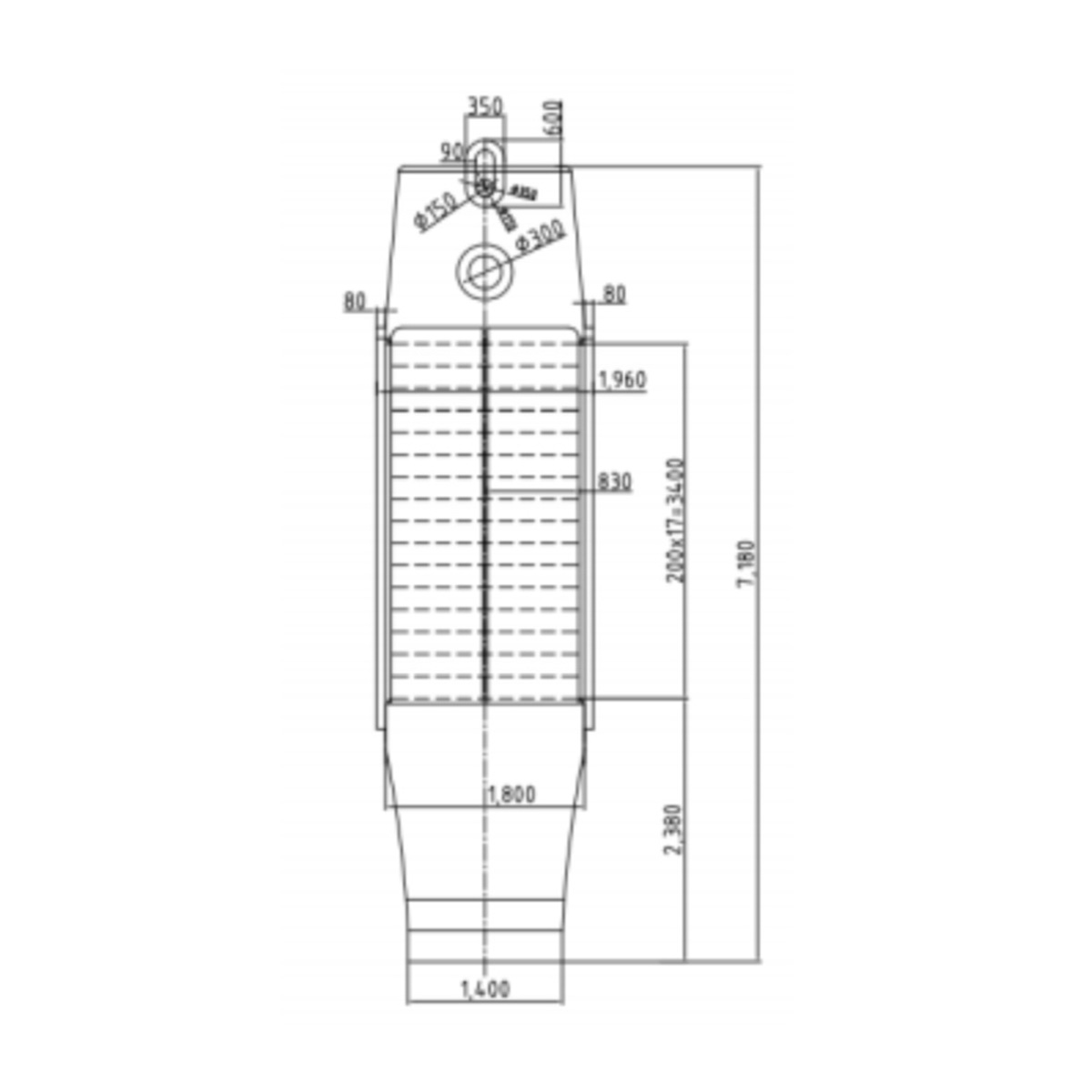

Heavy Hammer(200T)

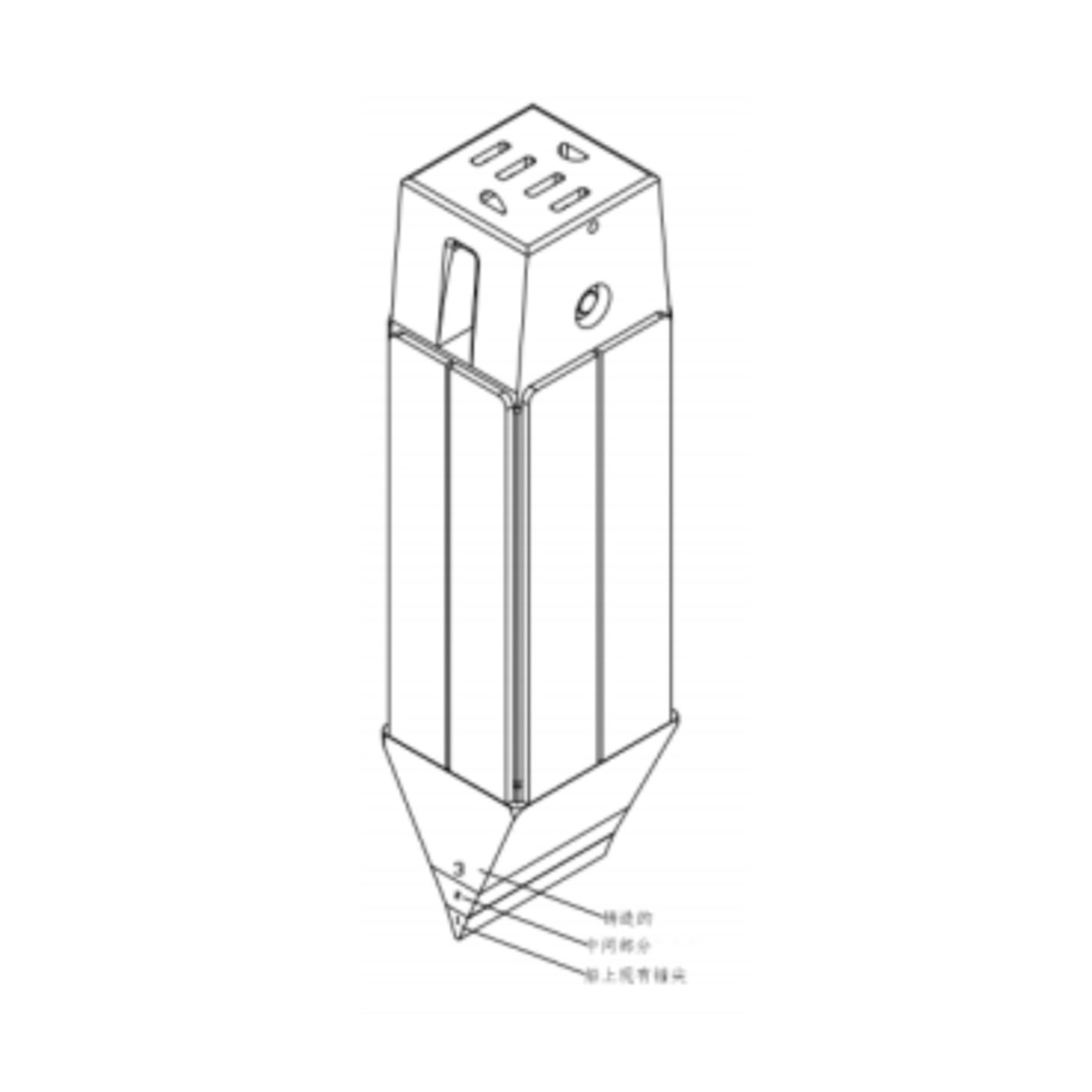

Light Hammer(130T)
